Cameron Type Blowout Preventer

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

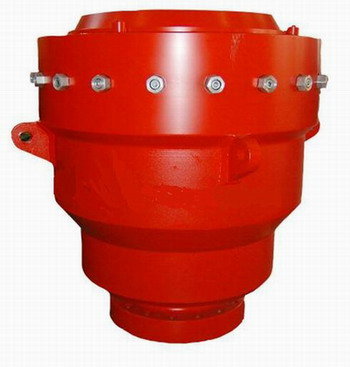

Cameron Type Blowout Preventer

Click to enlarge image

 Origin

China

 Brand Name

DYJX


Annular BOP

Specifications and technical parameters of Annular BOP with tapered rubber

Model

Bore(mm)

Working Pressure(m Pa/psi)

Close Volume(L)

Open Volume(L)

Dimensions

Total Weight (For reference)(kg)

A

B

FHZ18-70

179.4

70/10000

36

27

1200

1250

6293

FHZ28-70

279.4

70/10000

67

66

1465

1653

12290

FHZ35-70

346.1

70/10000

116

117

1554

1742

15190

FHZ43-35

425.4

35/5000

134

134

1680

1590

14100

FHZ54-14

539.7

14/2000

95.3

94.5

1380

1437

7660



Specifications and technical parameters of Annular BOP with spherical rubber

Model

Bore(mm)

Working Pressure(m Pa/psi)

Close Volume(L)

Open Volume(L)

Dimensions

Total Weight (For reference o)(kg)

A

B

C

D

E

F

FH18-21

179.4



21/3000

21

15

745

769

141

309

37

225

1433

FH18-35

35/5000

21

15

745

797

169

309

31

231

1520

FH23-21

228.6

21/3000

34

22.8

902

838

128

494

48

260

2398

FH23-35

35/5000

42

33

1016

860

110

500

72

262

2986

FH28-21

279.4

21/3000

50

39

1014

870

152

529

52

290

2950

FH28-35

35/5000

6

72

1146

1110

242

676

74

313

4675

FH35-21

346.1

21/3000

94

69

1271

1105

170

470

80

345

5738

FH35-35

35/5000

94

69

1683

1558

296

1410

428

534

6415

FH48-35

425.3

35/5000

220

171

1375

1293

260

569

74

414

16000

FH53-21

527.0

21/3000

173

110

2240

1718

315

1201

140

564

6994

FH54-35

539.7

35/5000

241

181













20230





Spherical blowout preventers are compact, annular type BOPS which seal reliably on almost any shape
or size – kellys, drill pipe, tool joints, drill collars, casing or wireline. Sphericals also provide positive pressure
control for stripping drill pipe into and out of the hole, They are available in bolted cover, wedge cover models.
There are also special lightweight models for airlifting and Arctic models for low temperature service.
SPECIAL FEATURES — SANYI SPHERICAL BOPS
Rugged, reliable sealing element provides positive seal after hundreds of tests to full working pressure
Strong, simple construction — only five major parts.
Compact body saves space. Height is 15 to20% less than height of some other annular BOPS.
Simple hydraulic system. Only two hydraulic Connections are needed.
Wear rings on moving parts prevent metal-to- metal contact. This feature prolongs preventer life.
Suitable for H2S service. Standard models are suitable for internal H2S service, and simple bolt And
lifting shackle changes convert them for external H2S service.
Special lightweight models can be carried by helicopter.
Servicing is easy. Element can be changed without getting mud or grit into the hydraulic System.
Steel segments reinforce sealing element but Do not protrude into well bore when element is open.
Element design provides long stripping life.



yuancai(AT)sdjianxin(dot)com



  Delivery lead time

7days

  Minimum order

1set
